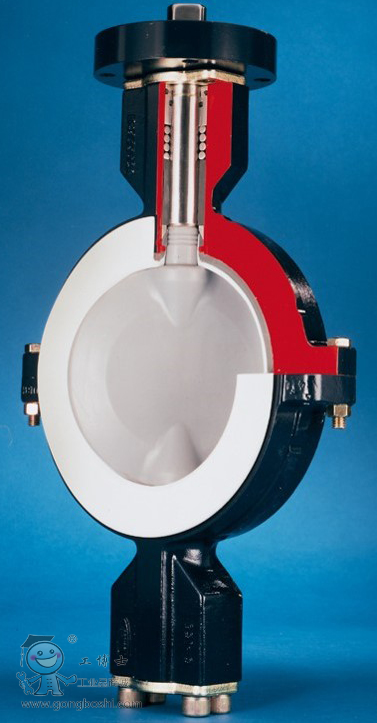

The BTV Lined Butterfly Valve is a reliable, leak-free service valve designed for a wide range of demanding requirements in corrosive chemical applications and process industries.
Features and Benefits
•Reduced downtime through the standard lined body and disc that defends against the most corrosive chemicals
•Lower maintenance costs from the triple-seal design and live-loaded shaft seal that never needs adjustment
•Increased application flexibility provided by a large selection of metal discs for use when greater protection is required
•Increased abrasion resistance in applications up to 93°C (200°F) with optional UHMWPE disc and body
Size Range:
•DN 50 to 600
•NPS 2" - 24"
Pressure Class Range:
•PN up to 10
•Up to 150 PSI
Seating Material: PFA, UHMWPE, Sentinel
